Chulz 7.5 Hp 80 Gal Air Compressor

The SCHULZ 7.5 HP Stationary Air Compressor is built to meet the demands of commercial and industrial applications requiring dependable three‑phase electric power and consistent air output. Powered by a 7.5 HP WEG electric motor, this unit operates on 208–230 volts, three phase, and delivers 30 CFM at 175 PSI, making it ideal for automotive shops, manufacturing facilities, and professional service environments.

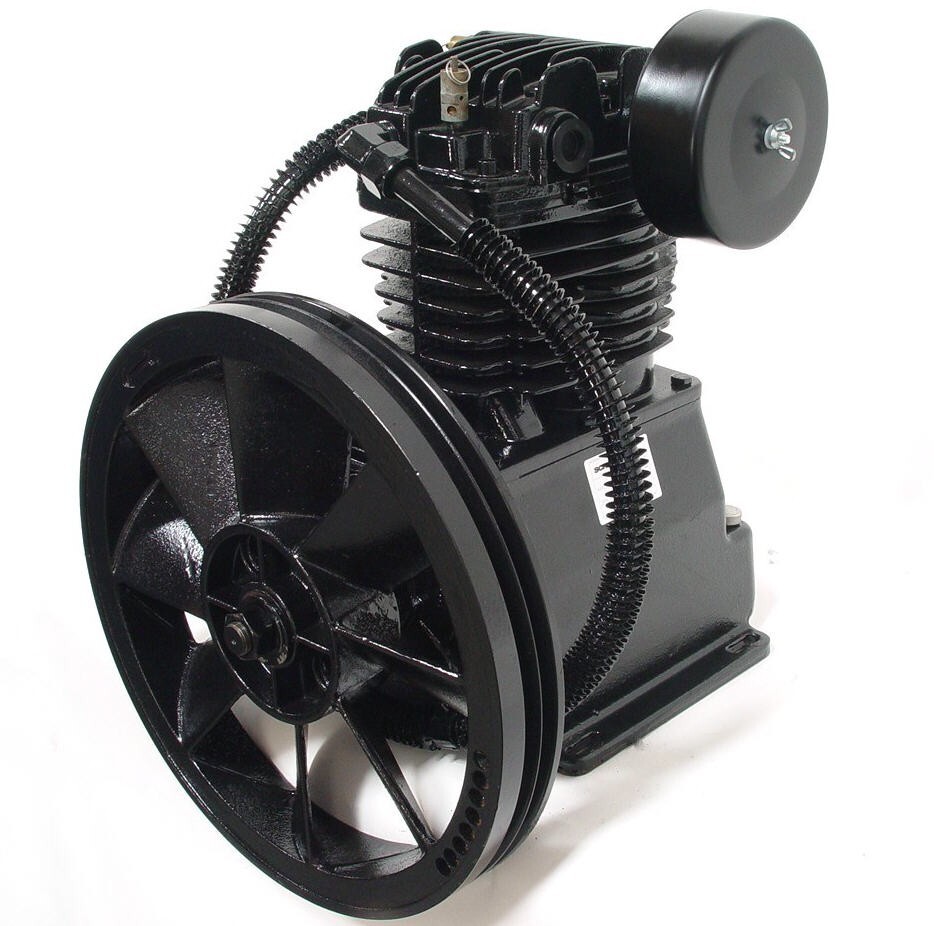

This compressor features an L‑Series two‑stage solid cast‑iron pump engineered to run cooler and last longer due to the space between each cylinder. Deeper cylinder fins improve heat dissipation, while oversized main bearings and Swedish steel valves contribute to long‑term durability and efficient air delivery. CNC‑machined components ensure accurate fit and top‑notch performance.

A belt‑drive system with standard notched belts provides smooth and efficient power transfer, and the enclosed belt guard protects both the belt and the operator. All major components are powder coated to resist rust and corrosion. The unit is mounted on an 80‑gallon ASME‑certified vertical tank, offering high air capacity while maintaining a compact footprint.

• 7.5 HP WEG electric motor for commercial‑duty performance
• 208–230V, three‑phase electric operation
• 30 CFM at 175 PSI air output
• L‑Series two‑stage solid cast‑iron pump
• Runs cooler due to spaced cylinder design
• Deeper cylinder fins for enhanced heat dissipation
• Oversized main bearings for reliability
• Swedish steel valves improve pump efficiency
• CNC‑machined components for precision fit
• Belt‑drive system with standard notched belts
• Enclosed belt guard protects operators
• Powder‑coated components resist rust and corrosion
• Integrated aftercooler
• ASME‑certified 80‑gallon vertical tank

General

• Part Number: 932.9322‑0
• Model Number: 7.580Vl30X‑3
• Product Category: Air Compressor – Stationary
• Power Type: Electric
• Certification: ASME

Motor

• Motor Brand: WEG
• Horsepower: 7.5 HP
• Voltage: 230 Volt AC
• Phase: Three Phase
• Magnetic Starter: Yes
• Amp Draw: Consult Certified Electrician
• Recommended Breaker: Consult Certified Electrician

Pump

• Pump Type: Two‑Stage
• Pump Series: L‑Series
• Pump Material: Solid Cast Iron
• Air Delivery: 30 CFM
• CFM Rated At: 175 PSI
• Maximum Pressure: 175 PSI
• Pump Drive: Belt Drive
• Oil Type: Oil Lubricated
• Oil System: Splash Lubricated
• Oil Sight Glass: Yes
• Low Oil Shut‑Off: No
• Aftercooler: Yes

Tank

• Tank Size: 80 Gallons
• Tank Orientation: Vertical
• Tank Outlet: 1/2 Inch
• Electronic Drain Valve: No

Accessories

• Pressure Gauge: Yes
• Air Dryer: No

Dimensions & Weight

• Length: 33.8 Inches
• Width: 25.2 Inches
• Height: 78.7 Inches
• Weight: 600 Pounds

• Unit Warranty: 1 Year
• Pump Warranty: 2 Years
